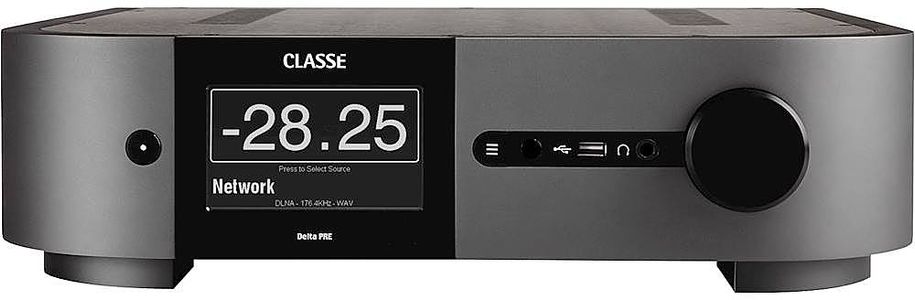

Classe Delta PRE Preamplifier MKII
At a Glance
Product Dimensions 4.78"h x 17.5"w x 17.68"d
**This is an open box item in like new condition, complete in the original box, with all accessories, and a full manufacturer's warranty** The Delta PRE mkii is the foundation of your perfect system. Designed to connect to a range of sources, the PRE will exact the highest performance from every recording, whether analog or digital.Read More
$12,000.00
Save $5,001.00
Get to know this product.
Product Overview
Product Overview
The Delta PRE is the foundation of your perfect system. Designed to connect to a range of sources, the PRE will exact the highest performance from every recording, whether analog or digital.
Delta PRE will deliver perfectly balanced audio to downstream Delta components.
Fidelity
Delta PRE is the foundation of your perfect system.
Designed to connect to a range of sources, Delta PRE will extract the highest performance from every recording, whether analog or digital.
Pre-amplifiers provide clean and controlled signals to the power stage. Both precision and perfection are required, and are delivered by Delta PRE.
Network, USB, AES/EBU, coax and optical inputs with optional HDMI
XLR and RCA inputs
Short signal paths to minimize signal interference
Custom-made Navcom® feet absorb and reduce vibrations
High-performance onboard MC/MM Phono stage supports up to two phono inputs
Rhodium-plated connectors for excellent and secure contacts
Control
Audiophiles, recording professionals and equipment reviewers trust Classé amplifiers as a source of sonic truth. Delta Series allows listeners to experience that truth in their own homes.
Every detail of the Delta Series is perfected by hand in our unique production facility in Japan to deliver powerful, natural, expansive sound with minimal noise or distortion.
0.25dB volume step precision to find your perfect sound level
Digital domain tone control with Delta PRE Tilt control
Support for mono or stereo subwoofers for better control of bass
Selectable frequency and slope control
Advanced five-band digital domain parametric equalization
Digital bypass mode available to all analog sources
Pass thru mode
Design
As the component you’re most likely to touch, the design of Delta PRE matches its exceptional acoustic performance.
Any interacting with Delta PRE is pure pleasure, from the superb cool-to-the-touch materials, to the precise tactile feedback of the volume control.
Touchscreen control reflects Delta PRE’s outstanding capability : pure analog clarity, advanced digital precision, confident, capable power and expressive sound.
Harmony between minimal design and unrivalled performance
Luxurious anodized aluminum body
Adjustable brightness, responsive touchscreen display
Perfectly complements other components in the Delta family
Useful Documents
Specifications
General Specs | |
| Product Weight (lbs.) | 29.8 |
| Depth (in.) | 17.68 |
| Width (in.) | 17.5 |
| Height (in.) | 4.78 |
| Weight Kilogram | 18.7 |
| MPN | DELTAPREUS |
| Shipping Depth (in.) | 22 |
| Shipping Width (in.) | 24 |
| Shipping Height (in.) | 10 |
| Collection | Delta PRE |
| Width (cm) | 44.4 |
| Height (cm.) | 12.1 |
| Depth (cm.) | 44.9 |
| Product Weight (kg) | 13.5 |
Overall Dimensions | |
| Width | 17.50 in (444 mm) |
| Depth (including connectors) | 17.68 in (449 mm) |
| Height (including feet) | 4.78 in (121 mm) |
Weight | |
| Gross Weight | 41.2 lbs (18.7kg) |
| Net Weight | 29.8 lbs (13.5kg) |
General | |
| Gain Range | -93dB to +14dB |
| Channel Matching | 0.05dB |
| Input Impedance (at 1kHz, BAL / SE) | 50kΩ |
| Output Impedance BAL / SE | 200Ω / 50Ω |
| Maximum Output Level BAL / SE | 18Vrms / 9Vrms |
Bypass Mode (Analog Inputs, Tone/EQ/Subwoofers Disabled) | |
| Frequency Response (-3dB, 50Ω source impedance) | 1Hz – 2MHz |
| Harmonic Distortion (measurement bandwidth: 90kHz) | <0.0004% at 1kHz <0.0005% at 10kHz <0.0006% at 20kHz |
| Intermodulation Distortion (measurement bandwidth: 90kHz) | <0.001% |
| Maximum Input Level BAL / SE (at 0dB gain) | 9Vrms (+21.3dBu) / 4.5Vrms (+15.3dBu) |
| Signal-to-Noise Ratio (A wtd) (22kHz BW, ref 9Vrms) | 130dB (133dBA) |
| Crosstalk (one channel undriven) (BAL / SE) | -143dB (100Hz), -140dB (1kHz), -124dB (10kHz) |
Phono Section (0DB Gain, Bypass Mode, XLR2 In, Main XLR Out) | |
| RIAA Deviation (20Hz-20kHz) | < 0.2dB |
| Selectable Load for MM Type (47k II) | 50pF, 100pF, 150pF, 200pF, 250pF, 300pF, 350pF, 400pF, 450pF |
| Selectable Load for MC – Low Output | 7.5Ω, 10Ω, 33Ω, 50Ω, 82Ω, 100Ω, 330Ω, 1kΩ |
| Load for MC – High Output | 47kΩ |
MM, MC - High Output | |
| Gain (1kHz, 20Ω source impedance) | 41.5dB |
| SNR (22kHz BW, ref 5mVrms in) | 86dB (93dB A-wtd) |
| Max Input Level (overload ref 5mVrms) | 11dB (20Hz), 23dB (1kHz), 34dB (10kHz) |
MC - Low Output | |
| Gain (1kHz, 20Ω source impedance, 1kΩ load) | 60dB |
| SNR (20Hz-20kHz) | 68dB (74dB A-wtd) |
| Max Input Level (overload ref 0.5mVrms, 1kΩ load) | 12dB (20Hz), 31dB (1kHz), 52dB (10kHz) |
Headphone Output | |
| Power (nominal input. 0dB gain, 32 Ω load) | 540mW |
| Output Impedance | 6.8Ω |
File Formats and Sample Rates Supported | |
| USB-F | 44.1k, 48k, 88.2k, 96k (iOS specific) |
| USB-B | 32k, 44.1k, 48k, 88.2k, 96k, 176.4k, 192k, 352.8k, 384k DSD64, DSD128, DSD256 (native – requires Thesycon/Classe driver for Windows) DSD64, (DoP) |
| Ethernet | WAV, AIFF, ALAC, FLAC, WMA, AAC, MP3, OGG_VORBIS (max 192k/24b) DSD64, (DoP) |
| SPDIF (opt, coax, AES / EBU) | PCM 32k, 44.1k, 48k, 88.2k, 96k, 176.4k, 192k / DSD64 |
Input / Output Complement Analog In | |
| BAL / XLR | 2 pairs (XLR2 can be assigned as BAL phono in) |
| SE / RCA | 2 pairs |
| Phono RCA | 1 pair |
Digital In | |
| HDMI *(optional) | 4* (HDMI 2.0b w/HDCP 2.2) |
| USB-F | 1 |
| USB-B | 1 |
| SPDIF Coaxial | 3 |
| SPDIF Optical | 3 |
| SPDIF AES / EBU | 1 |
| Ethernet | 1 |
Outputs | |
| HDMI *(optional) | 1* (HDMI 2.0b w/HDCP 2.2) |
| BAL / XLR | 5 (configurable: 2pairs+1sub, 1pair+1sub pair,…) |
| SE / RCA | 5 (configurable: 2pairs+1sub, 1pair+1sub pair,…) |
Automation | |
| DC Triggers In / Out | 2 sets |
| CAN Bus | 1 set in / out |
| RS-232 over RJ-45 | 1 |
