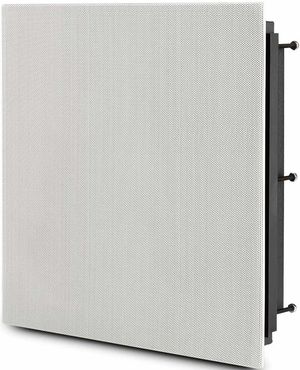

McIntosh® Black In-Wall Loudspeaker
McIntosh® Black In-Wall Loudspeaker 0
McIntosh® Black In-Wall Loudspeaker 1
McIntosh® Black In-Wall Loudspeaker 2
McIntosh® Black In-Wall Loudspeaker 3
McIntosh® Black In-Wall Loudspeaker 4

McIntosh® Black In-Wall Loudspeaker

Model #: WS300
At a Glance
The WS300 In-Wall Loudspeaker is a flexible speaker that can be adapted to many custom install uses in 2-channel home audio and home theater installations.
Available in Store Only

Get to know this product.

  • Fully enclosed speaker that fits in 2x4 walls
  • Perfect for distributed audio or home theaters
  • Up to 250 Watt Power Rating

The WS300 In-Wall Loudspeaker is a flexible speaker that can be adapted to many custom install uses in 2-channel home audio and home theater installations. For stereo listening, or distributed audio when combined with our MI128 or MI254 distribution amplifiers, a pair of WS300s can provide room filling sound.

For multi-channel home theater, it’s voice matched to our WS500 in-wall speaker and makes a perfect center channel speaker to use when WS500s are used for the front left and right speaker; or an entire home theater can be equipped with WS300s for the front, center and surround sound speakers. Either way, simply add one or more of our CS200 in-ceiling speaker, which is also voice matched to the WS300 and WS500, to complete the at home movie experience.

The 3-way WS300 is fully enclosed to deliver incredible performance in any environment plus a controlled air chamber minimizes distortion and response irregularities. It features one 8" woofer, two 2" inverted Titanium dome midranges and one 3/4" Titanium dome tweeter. The woofer uses a new shallow design that fits in standard 2x4 wall construction to help make installation easy. The woofer utilizes a long throw, high power design with a molded carbon reinforced cone with a molded elastomeric surround for high linearity. The midranges and tweeters are the same drivers used in our XR50 and XR100 home audio speakers and deliver the same level of performance.

The grille magnetically attaches for easy removal; it is also paintable and will leave little to no visible edge of the mounting flange so the speaker can virtually disappear into its surroundings. It comes with all required hardware and mounting mechanisms for post construction installations. An optional rough-in kit (#RK300) is available if needed. Contact your local dealer to learn more.


Electronic Specifications

Impedance Nominal4 Ohms
Power RatingUp to 250 Watts
Frequency Response80Hz to 20kHz
Sound Pressure Level, 2.8V/1m86dB
Crossover350Hz, 2,500Hz

Driver Specifications

Number of Woofers1
Woofer Size8"
Woofer TypeWoven Glass Fiber
Number of Midranges2
Midrange Size2"
Midrange TypeInverted Titanium Dome
Number of Tweeters1
Tweeter Size3/4"
Tweeter TypeTitanium Dome

General Specifications

System Type3-Way In-Wall
GrilleMagnetic metal mesh
Available FinishesBlack chassis with white paintable grille

Weights & Dimensions

Dimensions (W x H x D)14-1/4" (36.2cm) x 14-3/8" (36.5cm) x 3-5/8" (9.3cm)
Weight17 lbs (7.7 kg)
Shipping Weight24 lbs (10.9 kg)

Misc. Specs

Product Weight (lbs.)17
Manufacturer Warranty5 Year
Impedance4 Ohms
Depth (in.)3.63
Height (in.)14.38
Width (in.)14.25
Woofer Size8"
WarningProposition 65 Warning for California Residents
