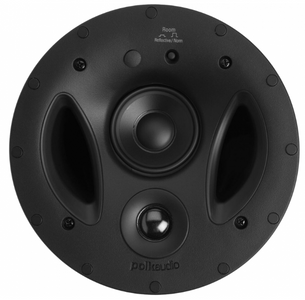

Polk Audio® Vanishing® Series 7" White In-Ceiling Speaker
Get to know this product.
Product Overview
Product Overview
Broad coverage and dynamic, full-range performance from an extra deep well design with a Cassini oval woofer
Painted to match your décor, Vanishing Series built-in speakers blend in perfectly with their surroundings
Innovative features and patented Polk Audio technology in a discrete, easy-to-install package
Timbre-matched to the RTiA Series
Sheer-Grille™
The unique, wafer-thin grille is magnetically secured to deliver nearly transparent, ultra-small perfs and dynamic, unimpeded sound.
Power Port®
Patented bass venting design smoothly transitions air flow, eliminating turbulence and distortion, for deeper, more efficient bass impact.
Timbre-Matching
Compatible with Polk Audio RTi speakers for seamless blending between traditional and built-in speaker systems.
Reflective Room Compensation
Lower tweeter levels offset reflective surfaces, cutting the level in the exact 4-5kHz band where reflectivity destroys sound quality.
Dual Band-Pass Bass Ports
Smooth funneling for low frequencies around the driver array eliminates “chuffing” for full-range blending, broad coverage and deep bass.
Simple Setup
Perfect Fit templates, a precision flange, (available) pre-construction brackets and the patented Rotating Cam system ensure secure, vibration-free installation.
Useful Documents
Specifications
General Specs | |
| Product Weight (lbs.) | 7.6 |
| MPN | AW1170 |
| Frequency Response | 34Hz - 27kHz |
| Enclosure Material | Polypropylene |
| Color Finish Name | White |
| Outdoor Approved | No |
| Manufacturer Warranty | Limited Lifetime |
| Bi Amp Inputs | No |
| Input Power Range | 10-125 Watts |
| Speaker Connector Type | Spring Clips |
| RMS Power Handling (Watts) | 125 |
| Color | White |
| Enclosure Type | Bass Reflex |
| Impedance | 8 ohms |
| Maximum Power Handling (Watts) | 125 |
| Sensitivity | 90 |
| Speaker Type | In-Ceiling Speakers |
| Bass Composition | Mineral-Filled Polypropylene Cone |
| Bass Size (in.) | 7 in. |
| Depth (in.) | 8.38 |
| Height (in.) | 8.13 |
| Width (in.) | 8.13 |
| Woofer Size | 7 |
Connections | |
| Connector Type: | Gold Plated Pair of Heavy Duty Spring Loaded |
Construction | |
| Tweeter Composition: | Polymer Dome |
| Midrange Size: | 2.5" |
| Midrange Composition: | Polypropylene |
Dimensions | |
| Width: | 8.13 |
Other | |
| Sold As: | Each |
Specifications | |
| Sensitivity: | 90 dB |
| Speaker Type: | In-Ceiling Speaker |
Styling | |
| Color: | White |
Overall | |
| Total Pieces | 1 |
Accessories | |
| Included Accessories | (1) Polk’s Wafer-thin Sheer Grille™ - White, Paintable |
| Optional Accessories | (1) PB 50 - Pre-Construction Bracket - Sold Separate |
Shipping Cartons | |
| Carton 1 | 9.75" (24.77 cm) h x 11" (27.94 cm) w x 13" (33.02 cm) d - 8.5 lbs (3.86 kg) |
Warranty | |
| Lifetime Warranty | Yes |
In-Ceiling Speaker | |
| Quantity Included | 1 |
| Availability | US; Internationally |
| Depth | 8.375" (21.27 cm) |
| Driver Complement | (1) 0.75" (1.91 cm) d (Round) Silk/Polymer Tweeter - Tweeter; (1) 2.5" (6.35 cm) d (Round) Dynamic Balance Driver with Mineral-Filled Polypropylene Cone - Midrange; (1) 7" (17.78 cm) d (Round) Dynamic Balance Sub with Mineral-Filled Polypropylene Cone - Subwoofer |
| Grille Dimensions | 8.13" (20.65 cm) diameter |
In-Ceiling Mount | |
| Shape | Round |
| Dimensions | 6.5" (16.51 cm) diameter |
Inputs | |
| Speaker Inputs | (1) Pair of Push Connectors - Gold-Plated |
Audio Quality | |
| Total Frequency Response | 34 Hz → 27,000 Hz |
| Nominal Impedance | 8 ohms |
| Sensitivity (1 watt @ 1 meter) | 90 dB |
| Lower and Upper -3dB Limits | 48 Hz → 25 Hz |
External Amplifier | |
| Recommended Amplifier Power Per Channel | 10 watts → 125 watts |
