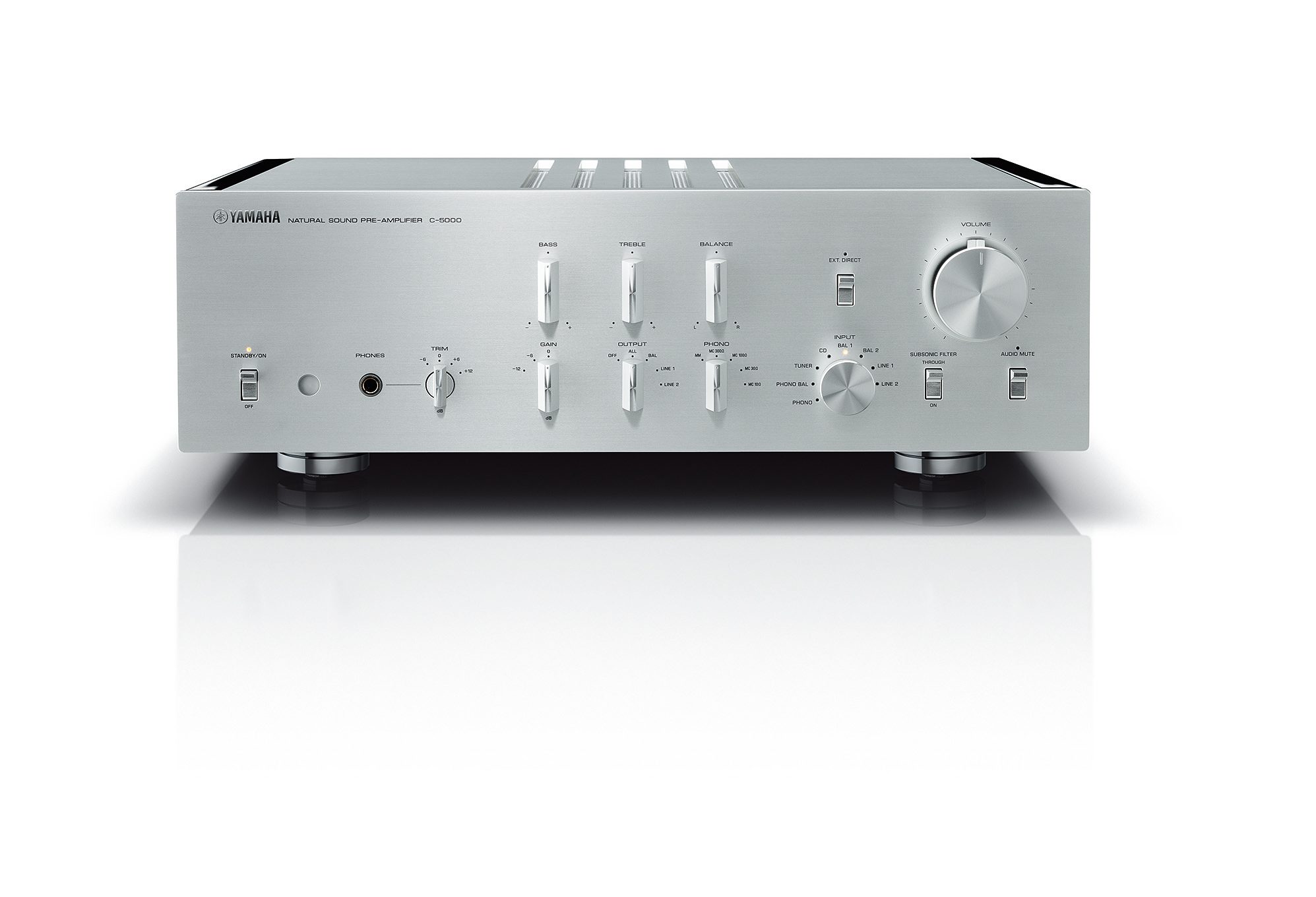

Yamaha C-5000 Stereo Preamplifier

Model #: C-5000

At a Glance

In pursuit of the intangible musical quality that breathes life into high-fidelity audio, the world's largest sound company presents the C-5000 preamplifier. From the concert stage to the home, Yamaha has drawn on its vast musical history to create an instrument capable of faithfully reproducing every nuance and emotion in the performance.

WarningProposition 65 Warning for California Residents
Yamaha C-5000 Stereo Preamplifier

General Specs

Analog Audio(RCA) Input6
ColorSilver/Black
Smart CompatibleNo
Wifi CapableNo
Bluetooth CapableNo

C-5000 Specifications

Input TerminalRCA:6 (PHONO, TUNER, CD, LINE 1, LINE 2 IN, EXT IN), BAL:4 (PHONO, BAL 1, BAL 2, EXT IN), TRIGGER IN: 1 (Slave mode), REMOTE IN:1
Output TerminalRCA:3 (LINE 2 OUT, LINE 1, LINE 2), BAL:1 (BAL), TRIGGER OUT: 2 (Master mode), REMOTE OUT:1
Rated Output Voltage [Input 200 mV, 20 Hz-20 kHz, 0.01% THD] (BAL BYPASS) 2 Vrms / 150 ohm, (BAL ATT) 1 Vrms / 150 ohm, (LINE 1 / LINE 2) 1 Vrms / 150 ohm), (LINE 2 RECOUT) 200 mVrms / 1.2 kohm
Maximum Output Voltage[1 kHz, 0.05% THD] (BAL) 6 Vrms, (LINE 1 / LINE 2) 3 Vrms, (LINE 2 RECOUT) 3Vrms
Input Sensitivity / Input Impedance[BAL / LINEOUT: 1 V] (BAL) 200 mVrms / 52 kohm, (LINE,etc) 200 mVrms / 47 kohm, [LINE 2 RECOUT, 150mV (1 kHz) ] (PHONO MC 300 ohms) 100 uVrms / 300 ohms, (PHONO MC 100 ohm) 100 uVrms / 100 ohms, (PHONO MC 30 ohm) 100 uVrms / 30 ohm, (PHONO MC 10 ohm) 100 uVrms / 10 ohm, (PHONO MM BAL(UNBAL)) 2.5 mVrms / 52 k (47 kohm), (EXT IN) 1 Vrms / 20 kohm
Maximum Input Signal Voltage[LINE2 REC (1kHz, 0.05% THD)] (BAL) 2.8 Vrms, (BAL ATT) 5.6 Vrms, (LINE,etc) 2.8 Vrms,(PHONO MC) 2 mVrms, (PHONO MM) 50 mVrms, [BAL/LINEOUT (1kHz 0.05% THD)](EXT IN) 5.6 Vrms
Frequency Response[JEITA, Load 22 kohm] (BAL/LINE, etc) +0 / -3 dB (10 Hz-100 kHz), +0 / -0.3 dB (20 Hz-20 kHz)
Total Harmonic Distortion Plus Noise[JEITA, Input: 0.5 V] 0.0100% (BAL [LINE, etc.] to BAL [LINE], 20 Hz-20 kHz), 0.0200% (MM / MC BAL [UNBAL] to LINE 2 RECOUT, 20 Hz-20 kHz)
Channnel Separation [JEITA, Input 1.0 kohm terminated, 1 kHz / 10 kHz] 110 dB or higher (BAL / LINE, etc.), 80 dB or higher (MC, BAL / UNBAL), 98 dB or higher (MM, BAL / UNBAL)
Function Separation[IHF-A network, Input 1.0 kohm terminated, JEITA] 110 dB or higher (BAL / LINE, etc.), 75 dB or higher (MC, BAL / UNBAL), 95 dB or higher (MM, BAL / UNBAL)
Signal-to-Noise Ratio[IHF-A network, Input 1.0 kohm terminated, JEITA] 110 dB or higher (BAL / LINE, etc.), 80 dB or higher (MC, 300 ohms, BAL / UNBAL), 98 dB or higher (MM, BAL / UNBAL)
Residual Noise[IHF-A network] 3 uV (BAL / LINE OUT)
Tone Control Characteristics(BASS) Boost / Cut [30 Hz] ±9 dB, Turnover Frequency 350 Hz, (TREBLE) Boost / Cut [20 Hz] ±9 dB, Turnover Frequency 3.5 kHz
Headphone Jack Rated Output Power35 mW + 35 mW (CD, etc. [1 kHz, 32 ohm, 0.2% THD])
Deviations from RIAA Equalizer±0.5 dB (MC / MM BAL [UNBAL])
Subsonic Filter15 Hz: -3 dB (MC / MM BAL [UNBAL])
Power Consumption60 W
Standby Power Consumption0.2 W
Power Management (Auto Power Standby)Yes
Dimension (W×H×D)17-1/8" x 5-5/8" x 17-3/4"
Weight 42.11 lbs.

Yamaha C-5000 Stereo Preamplifier

Model #: C-5000
1062382
Model #: C-5000
Yamaha
$99,999.00

At a Glance

In pursuit of the intangible musical quality that breathes life into high-fidelity audio, the world's largest sound company presents the C-5000 preamplifier. From the concert stage to the home, Yamaha has drawn on its vast musical history to create an instrument capable of faithfully reproducing every nuance and emotion in the performance.

Get to know this product.

C-5000 Preamplifier

In pursuit of the intangible musical quality that breathes life into high-fidelity audio, the world's largest sound company presents the C-5000 preamplifier. From the concert stage to the home, Yamaha has drawn on its vast musical history to create an instrument capable of faithfully reproducing every nuance and emotion in the performance.

Perfectly balanced signal transmission

Floating balanced preamp

Symmetrical, folding-book circuit design

Low-impedance design

Rigid and precise design

Dual Toroidal Transformer

Specifications

General Specs

Analog Audio(RCA) Input6
ColorSilver/Black
Smart CompatibleNo
Wifi CapableNo
Bluetooth CapableNo

C-5000 Specifications

Input TerminalRCA:6 (PHONO, TUNER, CD, LINE 1, LINE 2 IN, EXT IN), BAL:4 (PHONO, BAL 1, BAL 2, EXT IN), TRIGGER IN: 1 (Slave mode), REMOTE IN:1
Output TerminalRCA:3 (LINE 2 OUT, LINE 1, LINE 2), BAL:1 (BAL), TRIGGER OUT: 2 (Master mode), REMOTE OUT:1
Rated Output Voltage [Input 200 mV, 20 Hz-20 kHz, 0.01% THD] (BAL BYPASS) 2 Vrms / 150 ohm, (BAL ATT) 1 Vrms / 150 ohm, (LINE 1 / LINE 2) 1 Vrms / 150 ohm), (LINE 2 RECOUT) 200 mVrms / 1.2 kohm
Maximum Output Voltage[1 kHz, 0.05% THD] (BAL) 6 Vrms, (LINE 1 / LINE 2) 3 Vrms, (LINE 2 RECOUT) 3Vrms
Input Sensitivity / Input Impedance[BAL / LINEOUT: 1 V] (BAL) 200 mVrms / 52 kohm, (LINE,etc) 200 mVrms / 47 kohm, [LINE 2 RECOUT, 150mV (1 kHz) ] (PHONO MC 300 ohms) 100 uVrms / 300 ohms, (PHONO MC 100 ohm) 100 uVrms / 100 ohms, (PHONO MC 30 ohm) 100 uVrms / 30 ohm, (PHONO MC 10 ohm) 100 uVrms / 10 ohm, (PHONO MM BAL(UNBAL)) 2.5 mVrms / 52 k (47 kohm), (EXT IN) 1 Vrms / 20 kohm
Maximum Input Signal Voltage[LINE2 REC (1kHz, 0.05% THD)] (BAL) 2.8 Vrms, (BAL ATT) 5.6 Vrms, (LINE,etc) 2.8 Vrms,(PHONO MC) 2 mVrms, (PHONO MM) 50 mVrms, [BAL/LINEOUT (1kHz 0.05% THD)](EXT IN) 5.6 Vrms
Frequency Response[JEITA, Load 22 kohm] (BAL/LINE, etc) +0 / -3 dB (10 Hz-100 kHz), +0 / -0.3 dB (20 Hz-20 kHz)
Total Harmonic Distortion Plus Noise[JEITA, Input: 0.5 V] 0.0100% (BAL [LINE, etc.] to BAL [LINE], 20 Hz-20 kHz), 0.0200% (MM / MC BAL [UNBAL] to LINE 2 RECOUT, 20 Hz-20 kHz)
Channnel Separation [JEITA, Input 1.0 kohm terminated, 1 kHz / 10 kHz] 110 dB or higher (BAL / LINE, etc.), 80 dB or higher (MC, BAL / UNBAL), 98 dB or higher (MM, BAL / UNBAL)
Function Separation[IHF-A network, Input 1.0 kohm terminated, JEITA] 110 dB or higher (BAL / LINE, etc.), 75 dB or higher (MC, BAL / UNBAL), 95 dB or higher (MM, BAL / UNBAL)
Signal-to-Noise Ratio[IHF-A network, Input 1.0 kohm terminated, JEITA] 110 dB or higher (BAL / LINE, etc.), 80 dB or higher (MC, 300 ohms, BAL / UNBAL), 98 dB or higher (MM, BAL / UNBAL)
Residual Noise[IHF-A network] 3 uV (BAL / LINE OUT)
Tone Control Characteristics(BASS) Boost / Cut [30 Hz] ±9 dB, Turnover Frequency 350 Hz, (TREBLE) Boost / Cut [20 Hz] ±9 dB, Turnover Frequency 3.5 kHz
Headphone Jack Rated Output Power35 mW + 35 mW (CD, etc. [1 kHz, 32 ohm, 0.2% THD])
Deviations from RIAA Equalizer±0.5 dB (MC / MM BAL [UNBAL])
Subsonic Filter15 Hz: -3 dB (MC / MM BAL [UNBAL])
Power Consumption60 W
Standby Power Consumption0.2 W
Power Management (Auto Power Standby)Yes
Dimension (W×H×D)17-1/8" x 5-5/8" x 17-3/4"
Weight 42.11 lbs.
