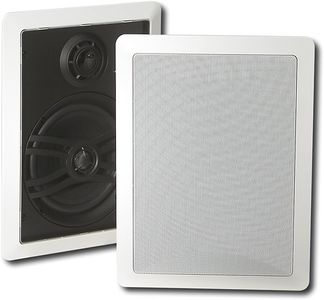

Yamaha® 6.5" 3-Way In-Wall Speaker System
At a Glance
Product Dimensions 11.94"h x 8.91"w x 3.81"d
Yamaha® 6.5" Natural Sound 3-Way In-Wall Speaker System with versatile design perfect for any room situation and paintable grille. Easy-to-Install, In-Wall Speaker System delivers high-quality natural sound to enhance the Home Theater experience.Read More
Get to know this product.
Product Overview
Product Overview
Do-It-Yourself Installation, Paintable Grille and Frame
With a few basic tools you can easily install these speakers in the wall yourself. The grilles and frames can be spray painted to match the room's decor.
Low Distortion, High Capacity Customized Crossover Network
The NS-IW470WH features a high quality crossover network to ensure maximum sound performance. The crossover circuit is designed to minimize distortion and prevent the deterioration of transients as they pass through the network.
Internally Wired with Monster Cable™
Yamaha has chosen to ensure optimum sound quality by internally wiring some of the components with Monster Cable™. This ensures a clean, clear signal from the crossover network to the speaker driver.
Swivel Tweeter and Midrange Driver, with High-Level Adjustment
You can swivel the tweeter and midrange driver to " aim" the high frequency sound toward the main listening area. To do this, simply press on the edge of the tweeter or midrange and set the position. You can also adjust the level of the midrange by using the "High-Level" control to match your taste or the installation environment.
Other Features
New Natural Sound In-Wall Speaker System
Versatile Design Perfect for Any Room Situation
6.5" Coated Paper Cone Woofer
2" Paper Cone Midrange (Level Adjustable)
1" Silk Soft Dome Tweeter
Swivel Tweeter and Midrange
Push-Type Speaker Terminals
120W Maximum Input Capability
Paintable Grille with Protective Cover Included
Dimensions: 8-29/32" x 11-15/16"
Useful Documents
Specifications
General Specs | |
| Product Weight (lbs.) | 4.18 |
| Color Finish Name | White |
| Manufacturer Warranty | 2 Year |
| RMS Power Handling (Watts) | 120 |
| Color | White |
| Impedance | 6 ohms |
| Maximum Power Handling (Watts) | 120 |
| Number of Speakers | 2 |
| Speaker Type | In-Wall Speakers |
| Depth (in.) | 3.81 |
| Height (in.) | 11.94 |
| Width (in.) | 8.91 |
| Woofer Size | 6.5" |
Certifications | |
| Warranty: | 2 Year Limited. See store for full details. |
Construction | |
| Tweeter Composition: | Silk Dome |
| Midrange Size: | 2" |
| Midrange Composition: | Cone |
| Woofer Composition: | Paper |
| Woofer Size: | 6.5" |
Default | |
| Features: | <p> Easy-to-Install, In-Wall Speaker System delivers high-quality natural sound to enhance the Home Theater experience.</p> <p> <strong>Do-It-Yourself Installation, Paintable Grille and Frame</strong></p> <ul> <li> With a few basic tools, you can easily install these speakers in the wall yourself. The grilles and frames can be spray painted to match the room's decor.</li> </ul> <p> <strong>Low Distortion, High Capacity Customized Crossover Network</strong></p> <ul> <li> The NS-IW470WH features a high-quality crossover network to ensure maximum sound performance. The crossover circuit is designed to minimize distortion and prevent the deterioration of transients as they pass through the network.</li> </ul> <p> <strong>Internally Wired with Monster Cable™</strong></p> <ul> <li> Yamaha has chosen to ensure optimum sound quality by internally wiring some of the components with Monster Cable™. This ensures a clean, clear signal from the crossover network to the speaker driver.</li> </ul> <p> <strong>Swivel Tweeter and Midrange Driver, with High-Level Adjustment</strong></p> <ul> <li> You can swivel the tweeter and midrange driver to " aim" the high frequency sound toward the main listening area. To do this, simply press on the edge of the tweeter or midrange and set the position. You can also adjust the level of the midrange by using the "High-Level" control to match your taste or the installation environment.</li> </ul> <p> <strong>Additional Features</strong></p> <ul> <li> New Natural Sound In-Wall Speaker System</li> <li> Versatile Design Perfect for Any Room Situation</li> <li> 6.5" Coated Paper Cone Woofer</li> <li> 2" Paper Cone Midrange (Level Adjustable)</li> <li> 1" Silk Soft Dome Tweeter</li> <li> Swivel Tweeter and Midrange</li> <li> Push-Type Speaker Terminals</li> <li> 120W Maximum Input Capability</li> <li> Paintable Grille with Protective Cover Included</li> <li> Dimensions: 8-29/32" x 11-15/16" </li> </ul> |
Dimensions | |
| Width: | 8.91 |
| Depth: | 3.81 |
| Height: | 11.94 |
| Weight: | 4.18 |
| Mount Depth: | 3.06 |
Other | |
| Crossover Type: | 5000Hz; 7000Hz |
Specifications | |
| Speaker Output Power: | 120 |
| Impedance: | 6 Ohms |
| Maximum Power Handling: | 120 |
| Number of Speakers: | 2 |
| Sensitivity: | 87dB (2.83v, 1m) |
| Speaker Type: | 3-way in-wall speaker system |
| Frequency Response: | 55 Hz - 28 kHz |
Styling | |
| Color: | White |
